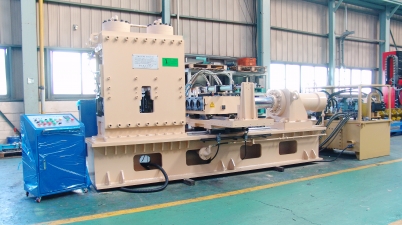

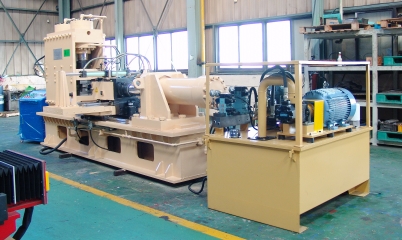

제 목 : 파이프축관기(Swaging M/C)
|
|
|
SPECIFICATION
| MODEL |
SK-SW |
| TUBE DIAMETER |
MAX Ø76.2 (Ø89.1) |
| WORK METER |
50MM ~ 400MM |
| POWER - FORMER/CLAMP |
100TON / 200TON |
| STORKE - FORMER/CLAMP |
700MM / 75MM |
| SHAFT #1 / SHAFT #2 |
225MM / 185MM |
| 압력 |
MAX 210Kgf /cm² |
| Measurement |
L 4700 × W 1950 × H 2100 |
|
|
|
|
| |
| |
|
|
|
|
